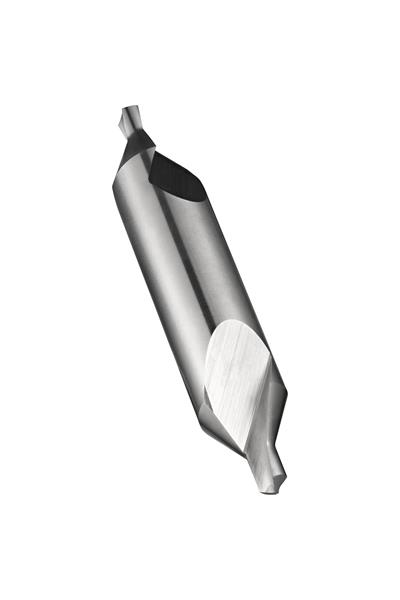

4.00 mm x 55 HSS Bright Finish 118 Deg. Combination Drill and Countersink (Center Drill)
- Item Code: 5969866
- Brand: Dormer
- Unit Size: 1
Description
Centre drill (combined drill and countersink) with 60 deg. straight conical form, single ended and cylindrical body, 4.00mm drill diameter, a body diameter of 10.00mm and an overall length of 55mm, according to DIN 333A standard to produce standardized centre holes according DIN 332 part 1 form A, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron
Tech Specs
Back To Top| Metric Diameter | 4.00 mm |
|---|---|
| Overall Length Decimal | 2.1654" |
| Point Angle | 118 Deg. |
| Shank Style | Cylindrical shank |
| Brand | Dormer |
| Decimal Diameter | 0.1575" |
| Overall Length Metric | 55.00 mm |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Material | High Speed Steel |
