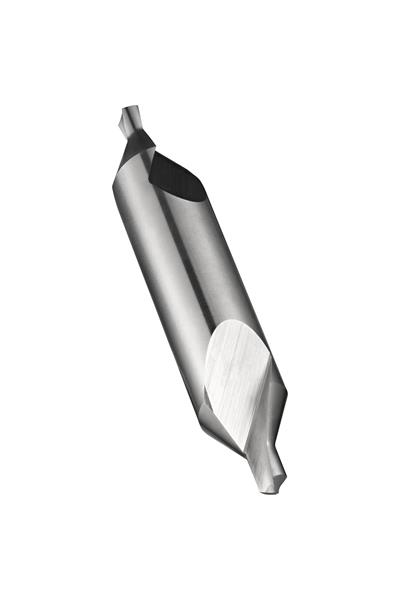

6.30 mm x 71 HSS Bright Finish 118 Deg. Combination Drill and Countersink (Center Drill)
- Item Code: 5969873
- Brand: Dormer
- Unit Size: 1
Description
Centre drill (combined drill and countersink) with 60 deg. straight conical form, single ended and cylindrical body, 6.30mm drill diameter, a body diameter of 16.00mm and an overall length of 71mm, according to DIN 333A standard to produce standardized centre holes according DIN 332 part 1 form A, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Material | High Speed Steel |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Decimal Diameter | 0.2480" |
| Overall Length Decimal | 2.7953" |
| Shank Style | Cylindrical shank |
| Metric Diameter | 6.30 mm |
| Point Angle | 118 Deg. |
| Overall Length Metric | 71.00 mm |
