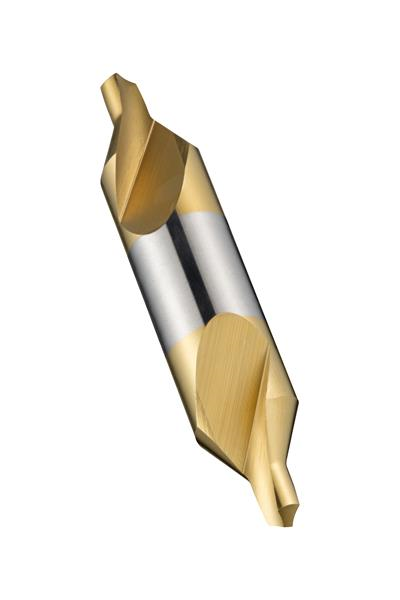

1.00 mm x 45 HSS Bright Finish 122 Deg. Combination Drill and Countersink (Center Drill)
- Item Code: 5969888
- Brand: Dormer
- Unit Size: 1
Description
Centre drill (combined drill and countersink) with 60 deg. straight conical form, double ended and cylindrical body, 1.00mm drill diameter, a body diameter of 4.00mm and an overall length of 35mm, according to DORMER standard to produce standardized centre holes according DIN 332 part 1 form A, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Metric Diameter | 1.00 mm |
| Overall Length Metric | 35.00 mm |
| Shank Style | Cylindrical shank |
| Decimal Diameter | 0.0394" |
| Cutting Direction | Right |
| Material | High Speed Steel |
| Point Angle | 122 Deg. |
| Overall Length Decimal | 1.3780" |
| Coating/Finish | Bright |
