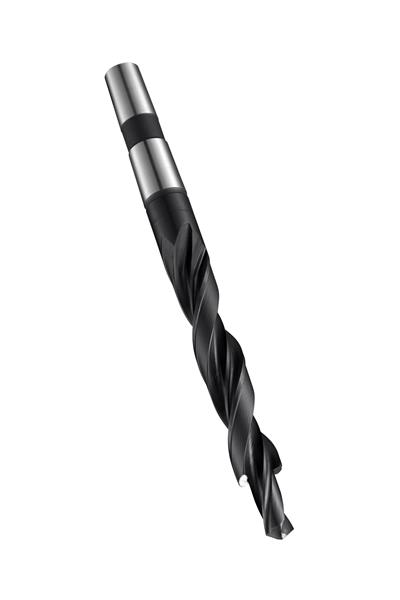

M4 x 117 mm HSS Steam Tempered RH 118 Deg. Point Subland Long Length Drill
- Item Code: 5970283
- Brand: Dormer
- Unit Size: 1
Description
Subland drill with 180? included step angle, straight shank and a drilling-pilot diameter of 4.50mm with a length of 11.00mm, a large diameter of 8.00mm and an overall length of 117mm, according to DIN 8376 standard to produce a medium fit through hole and flat bottom seat for M4 socket-head cap screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel and grey cast-iron
Tech Specs
Back To Top| Shank Style | Cylindrical shank |
|---|---|
| Point Angle | 118 Deg. |
| Brand | Dormer |
| Coating/Finish | Steam Oxide |
| Cutting Direction | Right |
| Metric Diameter | 4.50 mm |
| Decimal Diameter | 0.1772" |
| Flute Type | Standard Spiral |
| Overall Length Decimal | 4.6063" |
| Material | High Speed Steel |
| Overall Length Metric | 117 mm |
