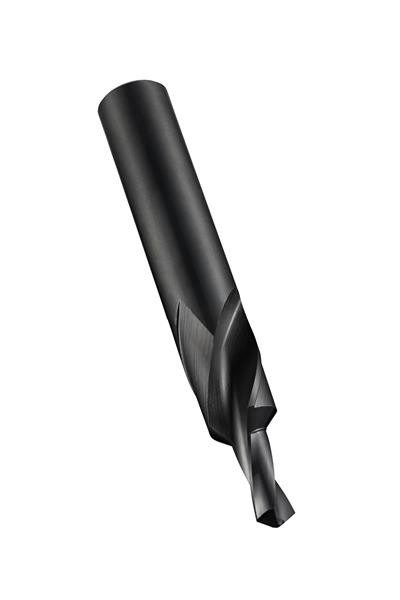

M10 x 141 mm HSS Steam Tempered RH 118 Deg. Step Drill
- Item Code: 5970338
- Brand: Dormer
- Unit Size: 1
Description
Step drill with 90? included step angle, straight shank and a drilling-pilot diameter of 11.00mm with a length of 23.00mm, a large diameter of 21.50mm and an overall length of 141mm, according to DORMER standard to produce a medium fit through hole and conical seat for M10 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel, ferritic and martensitic stainless steel and grey cast-iron
Tech Specs
Back To Top| Diameter | 11.00 mm |
|---|---|
| Material | High Speed Steel |
| Overall Length Metric | 141 mm |
| Cutting Direction | Right |
| Decimal Diameter | 0.4331" |
| Coating/Finish | Steam Oxide |
| Brand | Dormer |
| Overall Length Inches | 5.5512 |
| Point Angle | 118 Deg. |
| Shank Style | Cylindrical shank |
