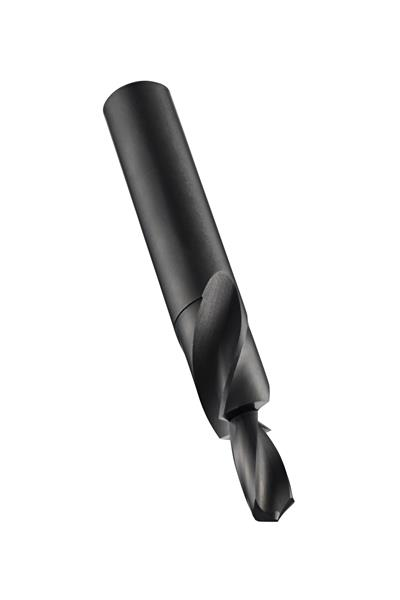

M6 x 102 mm HSS Steam Tempered RH 118 Deg. Step Drill
- Item Code: 5970352
- Brand: Dormer
- Unit Size: 1
Description
Step drill with 90? included step angle, straight shank and a drilling-pilot diameter of 6.60mm with a length of 15.00mm, a large diameter of 13.00mm and an overall length of 102mm, according to DORMER standard to produce a medium fit through hole and conical seat for M6 countersunk-head screws, HSS and steam tempered finish for machining free machining, plain carbon and alloy steel, ferritic and martensitic stainless steel and grey cast-iron
Tech Specs
Back To Top| Diameter | 6.60 mm |
|---|---|
| Overall Length Inches | 4.0157 |
| Point Angle | 118 Deg. |
| Decimal Diameter | 0.2598" |
| Material | High Speed Steel |
| Coating/Finish | Steam Oxide |
| Shank Style | Cylindrical shank |
| Cutting Direction | Right |
| Overall Length Metric | 102 mm |
| Brand | Dormer |
