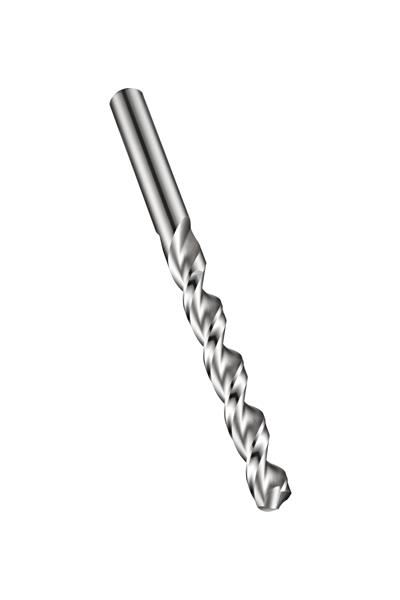

23/32 in. Cobalt (HSS-E) Bright Finish RH 130 Deg. Quick Spiral Flute Jobber Drill

  • Item Code: 5971490
  • Brand: Dormer
  • Unit Size: 1

Description

The A900 from Dormer is one of our PFX range of drills. These drill have a special parabolic flute design which means you can drill deep holes in a single pass ? no more need for ?pecking?. The 130 degree point angle helps to self-center the drill and also means less force is needed to penetrate the workpiece material. The A900 comes with a bright finish to prevent workpiece material from sticking to the cutting edge and is made from High Speed cobalt so can be used for drilling a number of materials including stainless steels, aluminium and other steels. Available in a large range of fractional and metric diameters, the A900 PFX drill is a high performance tool and is capable of producing high quality and accurate holes (H10 hole tolerance) even at high speeds and feeds.

Tech Specs

Back To Top
Cutting Direction Right
Metric Size 18.26 mm
Coating/Finish Bright
Shank Style Cylindrical shank
Material Cobalt
Point Angle 130 Deg.
Overall Length Inches 7.5197"
Brand Dormer
Decimal Size 0.7188"
Flute Type Quick Spiral
Fractional Size 23/32"
Overall Length Metric 191 mm
