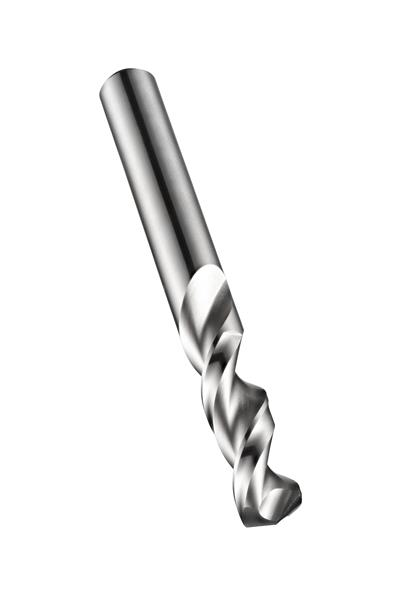

7.50 mm Cobalt (HSS-E) Bright Finish RH 130 Deg. Straight Shank Heavy Duty Premium Screw Machine Drill

  • Item Code: 5972399
  • Brand: Dormer
  • Unit Size: 1

Description

The A920 short drill from Dormer is available in an extensive range of fractional and metric diameters. Part of Dormer?s PFX range of drills, the A920 has a parabolic flute design which means deeper holes can be drilled in a single pass. The tool is made from High Speed cobalt and can be used to drill a number of different materials including aluminium, steels and stainless steels, whilst the bright finish means workpiece material will not stick to the cutting edge of the tool. The A920 has a 130 degree point angle which helps to self-center the tool on the hole and means less force is needed to drill into the workpiece. The A920 PFX drill is a high performance tool and produces high quality and accurate holes (to H10 hole tolerance) even at high speeds and feeds.

Tech Specs

Back To Top
Decimal Size 0.2953"
Overall Length Decimal 2.9134"
Cutting Direction Right
Brand Dormer
Flute Type Quick Spiral
Coating/Finish Bright
Material Cobalt
Point Angle 130 Deg.
Metric Size 7.50 mm
Overall Length Metric 74.00 mm
Shank Style Cylindrical shank
