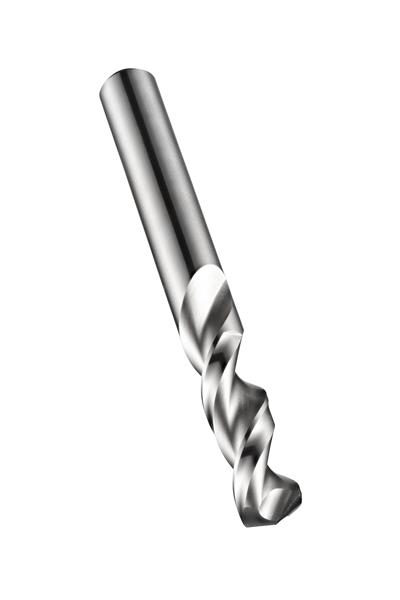

4.90 mm Cobalt (HSS-E) Bright Finish RH 130 Deg. Straight Shank Heavy Duty Premium Screw Machine Drill
- Item Code: 5972446
- Brand: Dormer
- Unit Size: 1
Description
The A920 short drill from Dormer is available in an extensive range of fractional and metric diameters. Part of Dormer?s PFX range of drills, the A920 has a parabolic flute design which means deeper holes can be drilled in a single pass. The tool is made from High Speed cobalt and can be used to drill a number of different materials including aluminium, steels and stainless steels, whilst the bright finish means workpiece material will not stick to the cutting edge of the tool. The A920 has a 130 degree point angle which helps to self-center the tool on the hole and means less force is needed to drill into the workpiece. The A920 PFX drill is a high performance tool and produces high quality and accurate holes (to H10 hole tolerance) even at high speeds and feeds.
Features
Back To Top- Low thrust design Heavy Duty self centering Notched Point for easier penetration
- Cobalt base material with Bronze Oxide for wear resistance and lubricity
Tech Specs
Back To Top| Flute Type | Quick Spiral |
|---|---|
| Overall Length Decimal | 2.4409" |
| Overall Length Metric | 62.00 mm |
| Brand | Dormer |
| Decimal Size | 0.1929" |
| Material | Cobalt |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Point Angle | 130 Deg. |
| Metric Size | 4.90 mm |
| Shank Style | Cylindrical shank |
