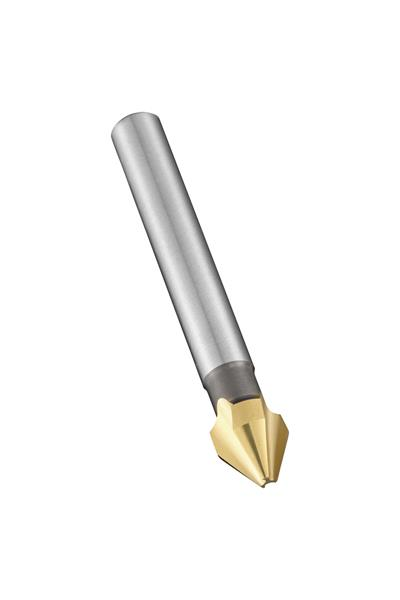

8.30 mm HSS TiAIN Coated RH 3 Flute 100 Deg. Single End Countersink
- Item Code: 5972706
- Brand: Dormer
- Unit Size: 1
Description
Countersink with 3-flutes, 100? chamfering angle, maximum diameter 8.30mm with an overall length of 49mm and a head length of 5.5mm and 6mm straight shank, according to DIN 335 C standard produce a conical seat for BS standard countersunk-head screws and aviation fasteners with a minium hole diameter of 2.00mm, HSS with standard TiAlN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Cutting Direction | Right |
|---|---|
| Number of Flutes | 3 |
| Material | High Speed Steel |
| Overall Length Metric | 49 mm |
| Point Angle | 100 Deg. |
| Coating/Finish | TiAlN |
| Metric Diameter | 8.30 mm |
| Overall Length Inches | 1.9291" |
| Brand | Dormer |
| Shank Style | Cylindrical shank |
