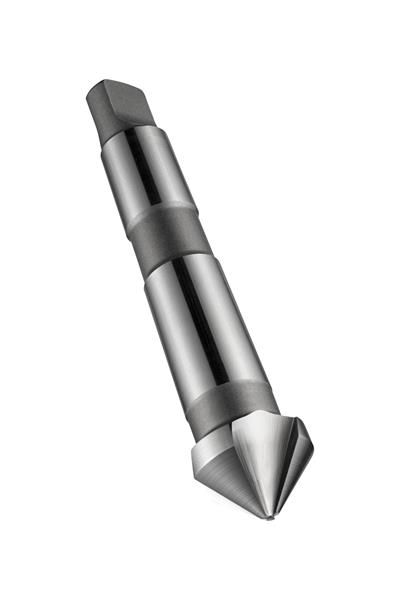

37.00 mm HSS Bright Finish RH 3 Flute 90 Deg. #2 Morse Taper Single End Countersink
- Item Code: 5973072
- Brand: Dormer
- Unit Size: 1
Description
Countersink with 3-flutes, 90? chamfering angle, maximum diameter 37.00mm with an overall length of 118mm and a head length of 21.7mm and MT 2 Morse-taper shank, according to DIN 335 D standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 4.80mm, HSS with standard bright finish for machining free machining and plain carbon steel, copper or copper alloys
Tech Specs
Back To Top| Material | High Speed Steel |
|---|---|
| Brand | Dormer |
| Overall Length Inches | 4.6457" |
| Shank Style | Morse Taper Shank |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Metric Diameter | 37.00 mm |
| Overall Length Metric | 118 mm |
| Point Angle | 90 Deg. |
