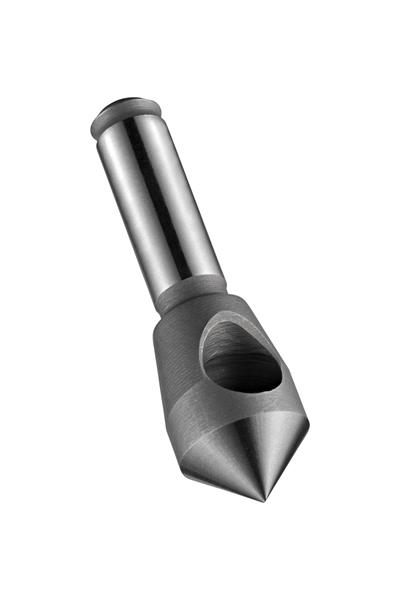

40.00 mm HSS Bright Finish RH 3 Flute 90 Deg. #2 Morse Taper Single End Countersink
- Item Code: 5973074
- Brand: Dormer
- Unit Size: 1
Description
Countersink with 3-flutes, 90? chamfering angle, maximum diameter 40.00mm with an overall length of 140mm and a head length of 20.5mm and MT 3 Morse-taper shank, according to DIN 335 D standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 10.00mm, HSS with standard bright finish for machining free machining and plain carbon steel, copper or copper alloys
Tech Specs
Back To Top| Metric Diameter | 40.00 mm |
|---|---|
| Overall Length Metric | 140 mm |
| Brand | Dormer |
| Overall Length Inches | 5.5118" |
| Coating/Finish | Bright |
| Material | High Speed Steel |
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Point Angle | 90 Deg. |
| Shank Style | Morse Taper Shank |
