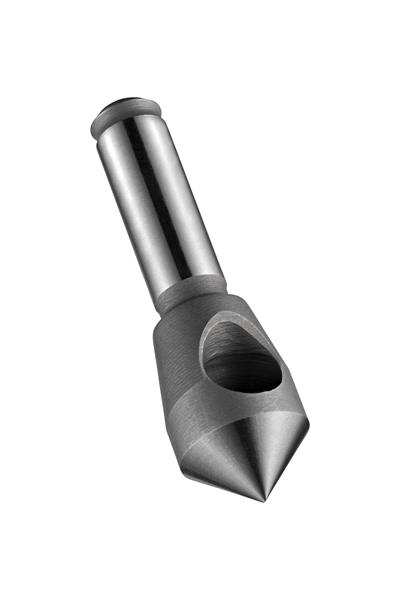

50.00 mm HSS Bright Finish RH 3 Flute 90 Deg. #2 Morse Taper Single End Countersink
- Item Code: 5973075
- Brand: Dormer
- Unit Size: 1
Description
Countersink with 3-flutes, 90? chamfering angle, maximum diameter 50.00mm with an overall length of 150mm and a head length of 24.1mm and MT 3 Morse-taper shank, according to DIN 335 D standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 14.00mm, HSS with standard bright finish for machining free machining and plain carbon steel, copper or copper alloys
Tech Specs
Back To Top| Coating/Finish | Bright |
|---|---|
| Brand | Dormer |
| Overall Length Inches | 5.9055" |
| Metric Diameter | 50.00 mm |
| Overall Length Metric | 150 mm |
| Point Angle | 90 Deg. |
| Shank Style | Morse Taper Shank |
| Material | High Speed Steel |
| Cutting Direction | Right |
| Number of Flutes | 3 |
