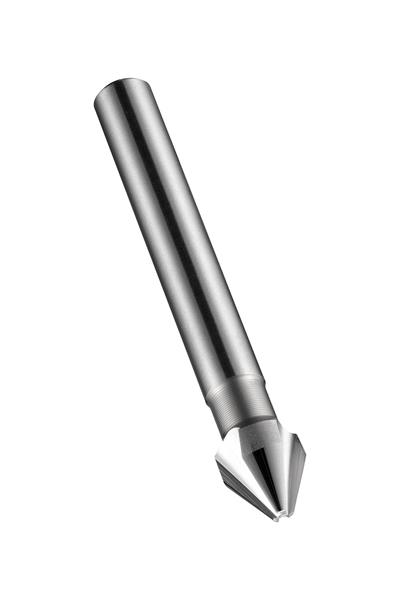

12.50 mm HSS Bright Finish RH 5 Flute 90 Deg. Countersink
- Item Code: 5973334
- Brand: Dormer
- Unit Size: 1
Description
Rose pattern countersink with 5-flutes, 90? chamfering angle, maximum diameter 12.50mm with an overall length of 48mm and a head length of 15.5mm and 8mm straight shank, according to DIN 335 A standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.00mm, HSS with standard bright finish for machining tool steel, grey cast-iron, cast aluminium
Tech Specs
Back To Top| Overall Length Inches | 1.8898" |
|---|---|
| Number of Flutes | 5 |
| Metric Diameter | 12.50 mm |
| Point Angle | 90 Deg. |
| Material | High Speed Steel |
| Shank Style | Cylindrical shank |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Overall Length Metric | 48 mm |
| Brand | Dormer |
