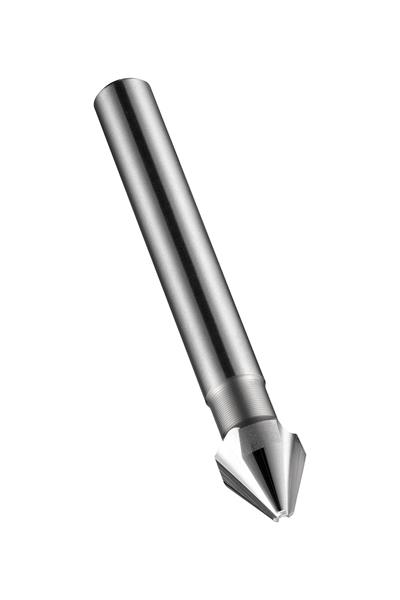

20.00 mm HSS Bright Finish RH 5 Flute 90 Deg. Countersink
- Item Code: 5973338
- Brand: Dormer
- Unit Size: 1
Description
Rose pattern countersink with 7-flutes, 90? chamfering angle, maximum diameter 20.00mm with an overall length of 60mm and a head length of 23mm and 10mm straight shank, according to DIN 335 A standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 5.00mm, HSS with standard bright finish for machining tool steel, grey cast-iron, cast aluminium
Tech Specs
Back To Top| Metric Diameter | 20.00 mm |
|---|---|
| Shank Style | Cylindrical shank |
| Brand | Dormer |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Point Angle | 90 Deg. |
| Material | High Speed Steel |
| Number of Flutes | 7 |
| Overall Length Metric | 60 mm |
| Overall Length Inches | 2.3622" |
