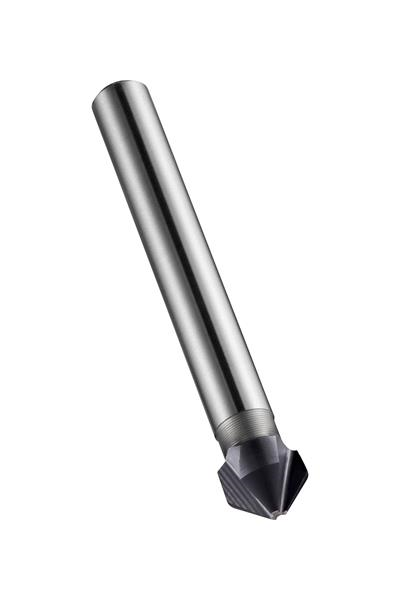

12.4 mm HSS TiAIN Coated RH 3 Flute 90 Deg. Single End Countersink
- Item Code: 5973339
- Brand: Dormer
- Unit Size: 1
Description
Countersink with 3-flutes, 90? chamfering angle, maximum diameter 12.40mm with an overall length of 56mm and a head length of 8.5mm and 8mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.80mm, HSS with standard TiAlN coating for machining free machining, plain carbon, alloy and tool steel, grey, malleable, ductile and compacted graphite cast-iron, cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Cutting Direction | Right |
|---|---|
| Number of Flutes | 3 |
| Metric Diameter | 12.40 mm |
| Overall Length Metric | 56 mm |
| Shank Style | Cylindrical shank |
| Brand | Dormer |
| Coating/Finish | TiAlN |
| Material | High Speed Steel |
| Point Angle | 90 Deg. |
| Overall Length Inches | 2.2047" |
