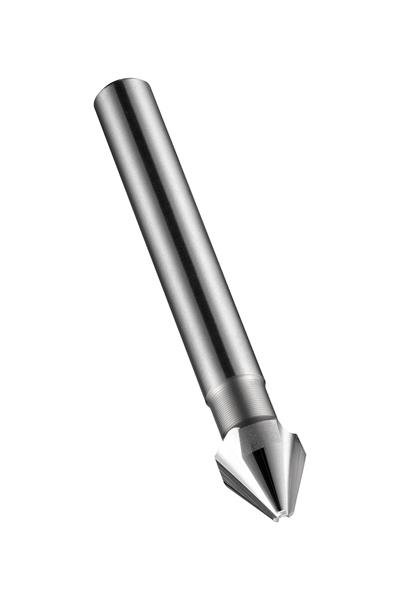

16.0 mm HSS Bright Finish RH 3 Flute 60 Deg. Countersink
- Item Code: 5973346
- Brand: Dormer
- Unit Size: 1
Description
Countersink with 3-flutes, 60? chamfering angle, maximum diameter 16.00mm with an overall length of 63mm and a head length of 14.5mm and 10mm straight shank, according to DIN 334 C standard for deburring and chamfering holes with a minium hole diameter of 4.00mm, HSS with standard bright finish for machining free machining and plain carbon steel, cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Coating/Finish | Bright |
|---|---|
| Material | High Speed Steel |
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Shank Style | Cylindrical shank |
| Brand | Dormer |
| Metric Diameter | 16.00 mm |
| Overall Length Inches | 2.4803" |
| Overall Length Metric | 63 mm |
