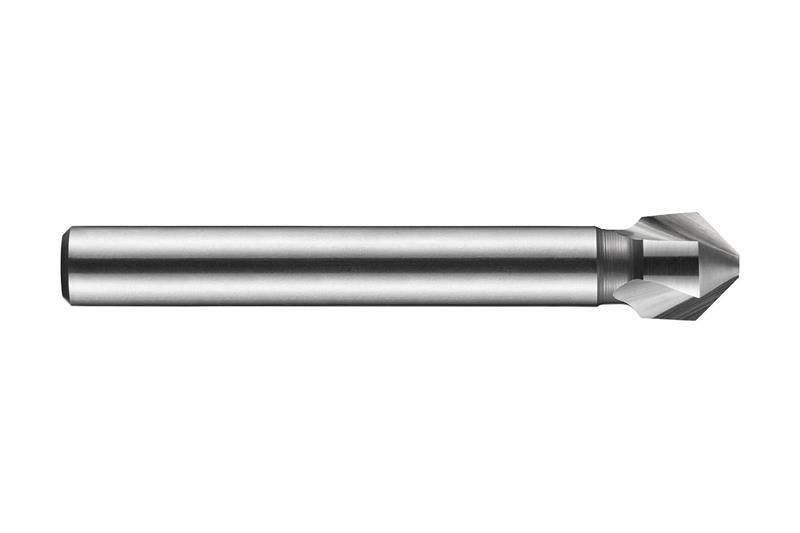

25.00 mm HSS Bright Finish RH 3 Flute 60 Deg. Countersink
- Item Code: 5973352
- Brand: Dormer
- Unit Size: 1
Description
Countersink with 3-flutes, 60? chamfering angle, maximum diameter 25.00mm with an overall length of 71mm and a head length of 20.5mm and 10mm straight shank, according to DIN 334 C standard for deburring and chamfering holes with a minium hole diameter of 6.30mm, HSS with standard bright finish for machining free machining and plain carbon steel, cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Overall Length Inches | 2.7953" |
|---|---|
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Brand | Dormer |
| Coating/Finish | Bright |
| Metric Diameter | 25.00 mm |
| Overall Length Metric | 71 mm |
| Material | High Speed Steel |
| Shank Style | Cylindrical shank |
