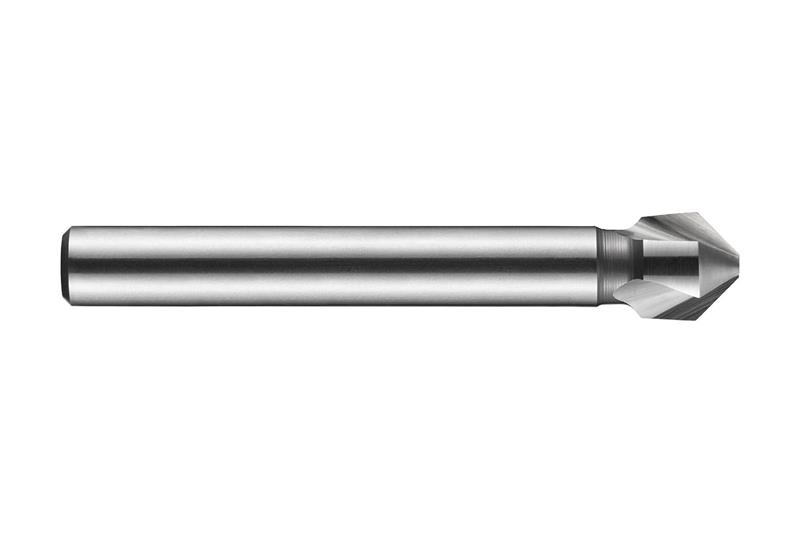

6.30 mm HSS Bright Finish RH 3 Flute 60 Deg. Countersink
- Item Code: 5973354
- Brand: Dormer
- Unit Size: 1
Description
Countersink with 3-flutes, 60? chamfering angle, maximum diameter 6.30mm with an overall length of 45mm and a head length of 6.8mm and 5mm straight shank, according to DIN 334 C standard for deburring and chamfering holes with a minium hole diameter of 1.60mm, HSS with standard bright finish for machining free machining and plain carbon steel, cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Metric Diameter | 6.30 mm |
|---|---|
| Brand | Dormer |
| Material | High Speed Steel |
| Overall Length Inches | 1.7717" |
| Overall Length Metric | 45 mm |
| Shank Style | Cylindrical shank |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Number of Flutes | 3 |
