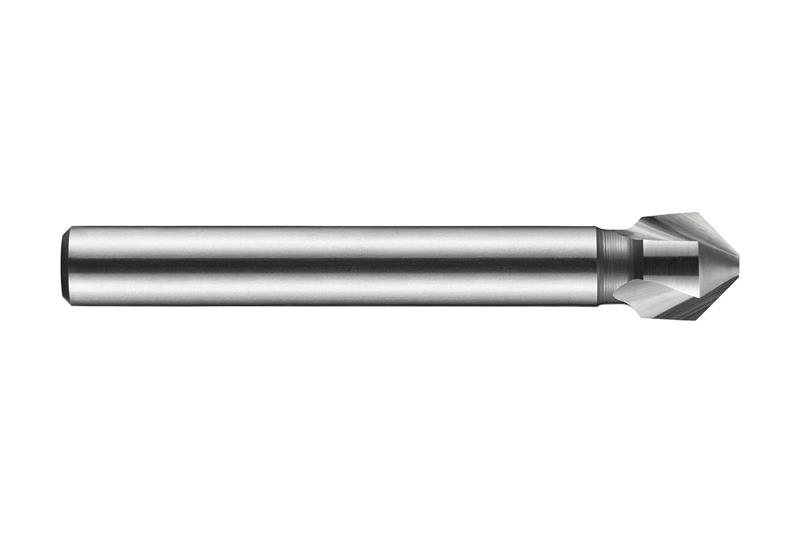

13.40 mm HSS Bright Finish RH 3 Flute 90 Deg. General Purpose Single End Countersink
- Item Code: 5973366
- Brand: Dormer
- Unit Size: 1
Description
Countersink with 3-flutes, 90? chamfering angle, maximum diameter 13.40mm with an overall length of 56mm and a head length of 9mm and 8mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.90mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, copper or copper alloys
Tech Specs
Back To Top| Metric Diameter | 13.40 mm |
|---|---|
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Overall Length Metric | 56 mm |
| Brand | Dormer |
| Overall Length Inches | 2.2047" |
| Point Angle | 90 Deg. |
| Coating/Finish | Bright |
| Material | High Speed Steel |
| Shank Style | Cylindrical shank |
