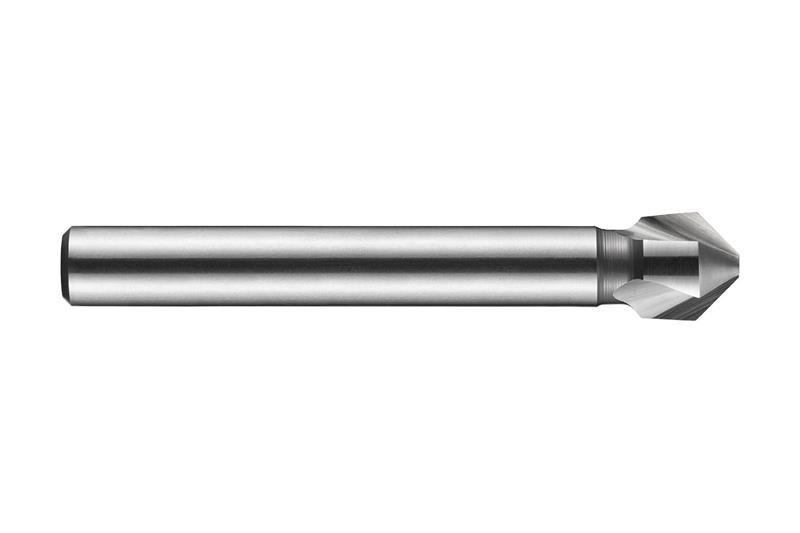

31.00 mm HSS Bright Finish RH 3 Flute 90 Deg. General Purpose Single End Countersink
- Item Code: 5973387
- Brand: Dormer
- Unit Size: 1
Description
Countersink with 3-flutes, 90? chamfering angle, maximum diameter 31.00mm with an overall length of 71mm and a head length of 18.5mm and 12mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 4.20mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, copper or copper alloys
Tech Specs
Back To Top| Coating/Finish | Bright |
|---|---|
| Point Angle | 90 Deg. |
| Material | High Speed Steel |
| Brand | Dormer |
| Metric Diameter | 31.00 mm |
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Overall Length Inches | 2.7953" |
| Overall Length Metric | 71 mm |
| Shank Style | Cylindrical shank |
