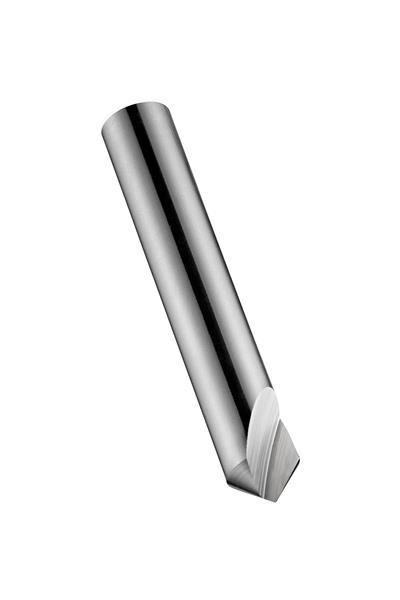

10.00 mm x 49 mm OAL HSS Bright Finish RH 90 Deg. Countersink
- Item Code: 5973391
- Brand: Dormer
- Unit Size: 1
Description
Countersink with 1-flute, 90? chamfering angle, maximum diameter 10.00mm with an overall length of 49mm and a head length of 17mm and 8mm straight shank, according to DORMER standard to produce a conical seat for ISO Metric countersunk-head screws, HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys
Tech Specs
Back To Top| Shank Style | Cylindrical shank |
|---|---|
| Metric Diameter | 10 mm |
| Overall Length Inches | 1.9291" |
| Brand | Dormer |
| Material | High Speed Steel |
| Number of Flutes | 1 |
| Overall Length Metric | 49 mm |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Decimal Diameter | 0.3937" |
| Point Angle | 90 Deg. |
