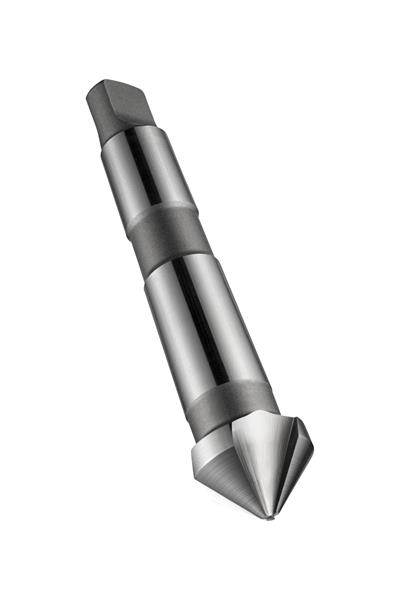

9.40 mm HSS Bright Finish RH 3 Flute 90 Deg. General Purpose Single End Countersink
- Item Code: 5973405
- Brand: Dormer
- Unit Size: 1
Description
Countersink with 3-flutes, 90? chamfering angle, maximum diameter 9.40mm with an overall length of 50mm and a head length of 7.2mm and 6mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.20mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, copper or copper alloys
Tech Specs
Back To Top| Metric Diameter | 9.40 mm |
|---|---|
| Point Angle | 90 Deg. |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Material | High Speed Steel |
| Shank Style | Cylindrical shank |
| Brand | Dormer |
| Overall Length Metric | 50 mm |
| Overall Length Inches | 1.9685" |
