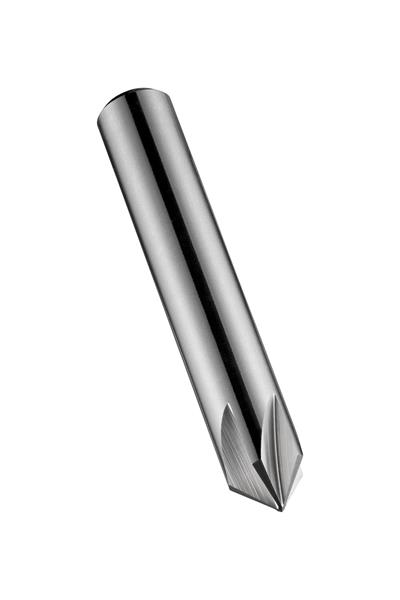

31.50 mm x 80 mm OAL HSS Bright Finish RH 90 Deg. Countersink
- Item Code: 5973411
- Brand: Dormer
- Unit Size: 1
Description
Countersink with 1-flute, 90? chamfering angle, maximum diameter 31.50mm with an overall length of 80mm and a head length of 29mm and 12mm straight shank, according to DORMER standard to produce a conical seat for ISO Metric countersunk-head screws, HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys
Tech Specs
Back To Top| Metric Diameter | 31.50 mm |
|---|---|
| Brand | Dormer |
| Material | High Speed Steel |
| Number of Flutes | 1 |
| Shank Style | Cylindrical shank |
| Cutting Direction | Right |
| Decimal Diameter | 1.2402" |
| Point Angle | 90 Deg. |
| Coating/Finish | Bright |
| Overall Length Metric | 80 mm |
| Overall Length Inches | 3.1496" |
