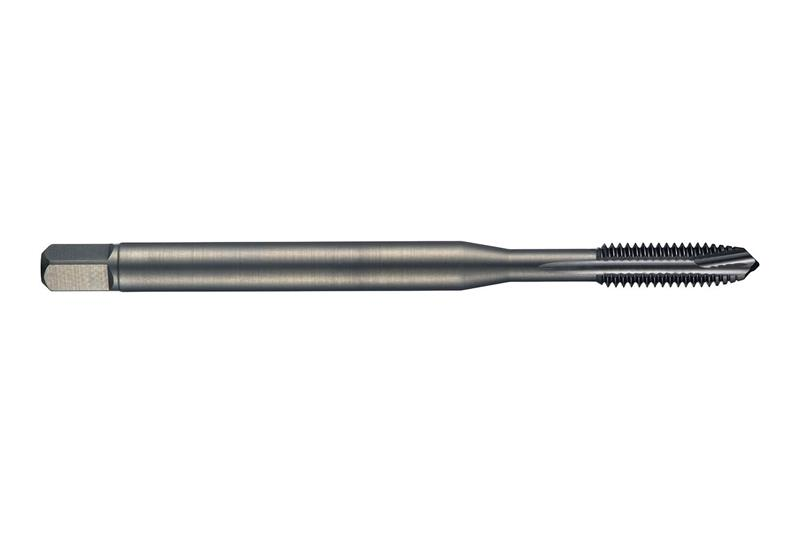

27 mm x 3.00 mm Coarse Carbide (HSS-E) Steam Oxide Finish RH 6H 3 Flute Plug Spiral Point Machine Tap
- Item Code: 5973429
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M27 with 3.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 20.0mm shank and 16.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications
Tech Specs
Back To Top| Shank Style | Cylindrical shank with Square |
|---|---|
| Material | HSS Cobalt Powdered Metal |
| Overall Length Inches | 6.2992 |
| Number of Flutes | 4 |
| Brand | Dormer |
| Overall Length Metric | 160 mm |
| Coating/Finish | Steam Tempered |
| Cutting Direction | Right |
