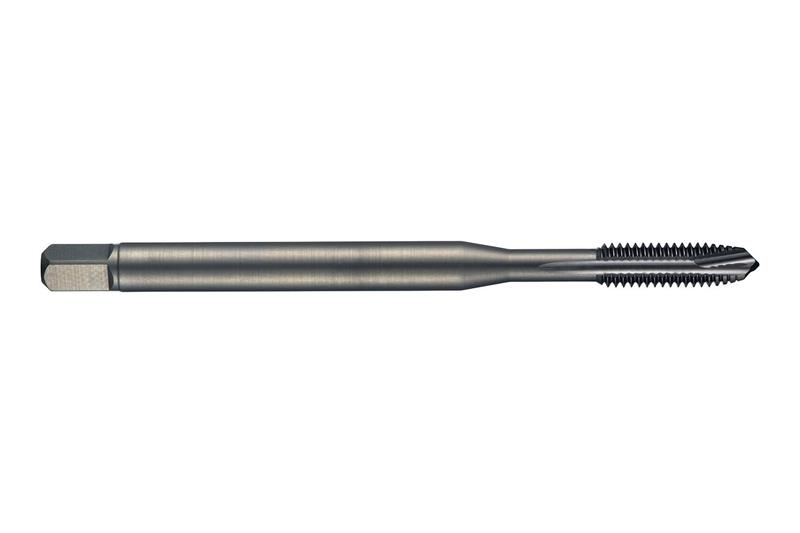

8 mm x 1.25 mm Coarse Carbide (HSS-E) Steam Oxide Finish RH 6H 3 Flute Plug Spiral Point Machine Tap
- Item Code: 5973450
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications
Tech Specs
Back To Top| Coating/Finish | Steam Tempered |
|---|---|
| Cutting Direction | Right |
| Material | HSS Cobalt Powdered Metal |
| Number of Flutes | 3 |
| Shank Style | Cylindrical shank with Square |
| Brand | Dormer |
| Overall Length Metric | 90 mm |
| Overall Length Inches | 3.5433 |
