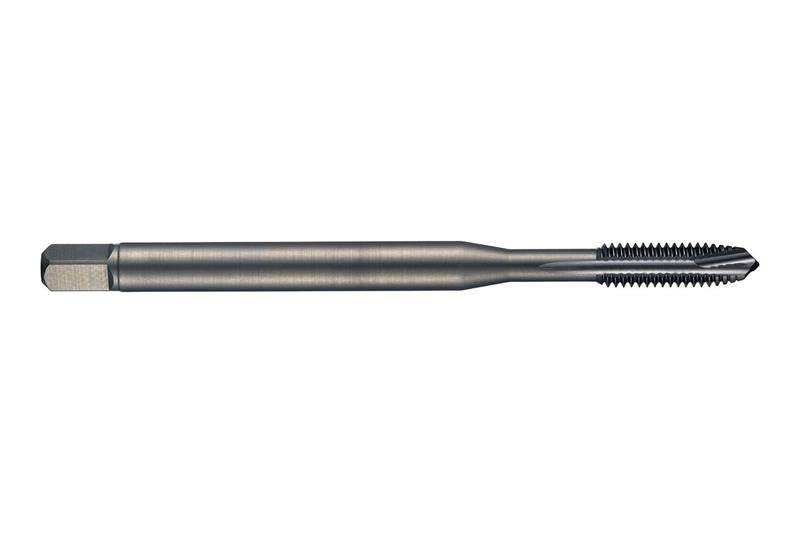

2.5 mm x 0.45 mm Coarse Carbide (HSS-E) Steam Oxide Finish RH 6H 2 Flute Plug Spiral Point Machine Tap
- Item Code: 5973475
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M2.5 with 0.45 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 2.8mm shank and 2.1mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications
Tech Specs
Back To Top| Number of Flutes | 2 |
|---|---|
| Overall Length Metric | 50 mm |
| Coating/Finish | Steam Tempered |
| Material | HSS Cobalt Powdered Metal |
| Cutting Direction | Right |
| Brand | Dormer |
| Overall Length Inches | 1.9685 |
| Shank Style | Cylindrical shank with Square |
