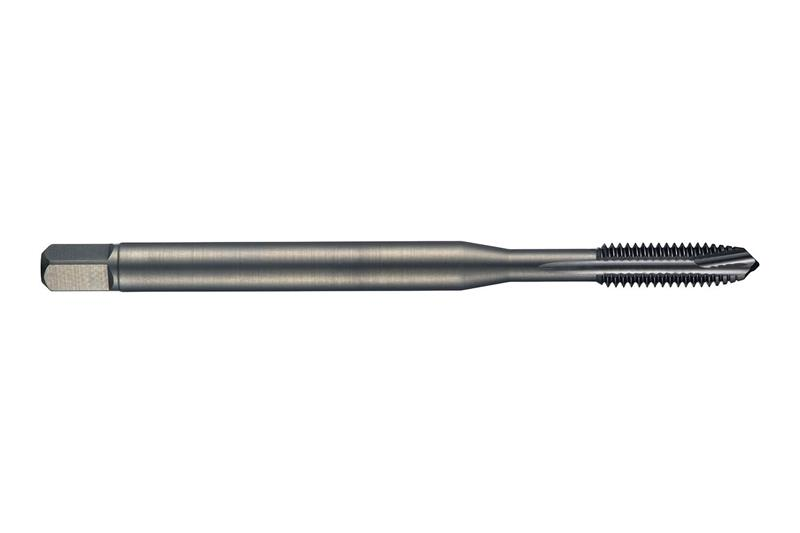

22 mm x 2.50 mm Coarse Carbide (HSS-E) Steam Oxide Finish RH 6H 4 Flute Plug Spiral Point Machine Tap
- Item Code: 5973480
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M22 with 2.50 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 18.0mm shank and 14.5mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Overall Length Inches | 5.5118 |
| Coating/Finish | Steam Tempered |
| Number of Flutes | 4 |
| Overall Length Metric | 140 mm |
| Cutting Direction | Right |
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
