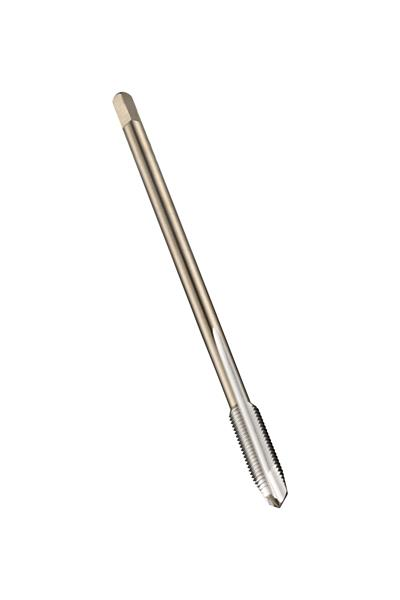

18 mm x 1.50 mm Fine Carbide (HSS-E) Bright Finish RH 6H 4 Flute Plug Spiral Point Machine Tap
- Item Code: 5973483
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric Fine thread M18 with 1.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 14.0mm shank and 11.0mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium
Tech Specs
Back To Top| Overall Length Metric | 110 mm |
|---|---|
| Overall Length Inches | 4.3307 |
| Brand | Dormer |
| Coating/Finish | Bright |
| Number of Flutes | 4 |
| Cutting Direction | Right |
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
