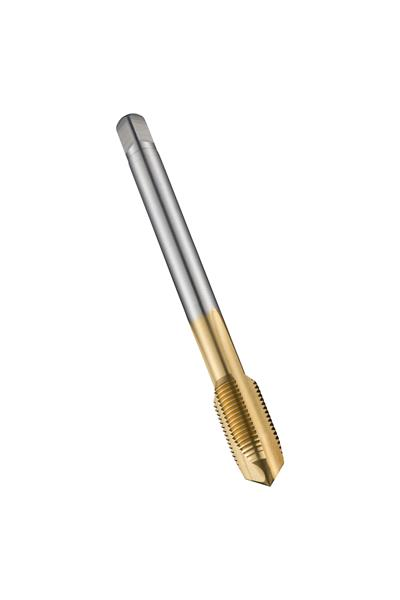

5 mm x 0.50 mm Fine Carbide (HSS-E) Bright Finish RH 6H 3 Flute Plug Spiral Point Machine Tap
- Item Code: 5973503
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric Fine thread M5 with 0.50 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 3.5mm shank and 2.7mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium
Tech Specs
Back To Top| Overall Length Inches | 2.7559 |
|---|---|
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Brand | Dormer |
| Overall Length Metric | 70 mm |
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
| Coating/Finish | Bright |
