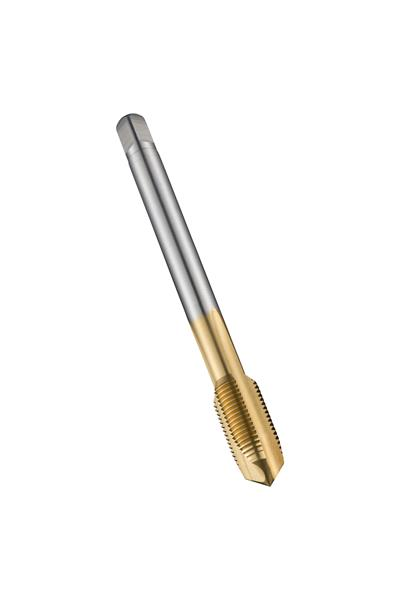

8 mm x 0.75 mm Fine Carbide (HSS-E) Bright Finish RH 6H 3 Flute Plug Spiral Point Machine Tap
- Item Code: 5973505
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric Fine thread M8 with 0.75 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining, plain carbon and alloy steel and wrought or cast aluminium
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Coating/Finish | Bright |
| Material | HSS Cobalt Powdered Metal |
| Overall Length Inches | 3.1496 |
| Shank Style | Cylindrical shank with Square |
| Overall Length Metric | 80 mm |
| Cutting Direction | Right |
| Number of Flutes | 3 |
