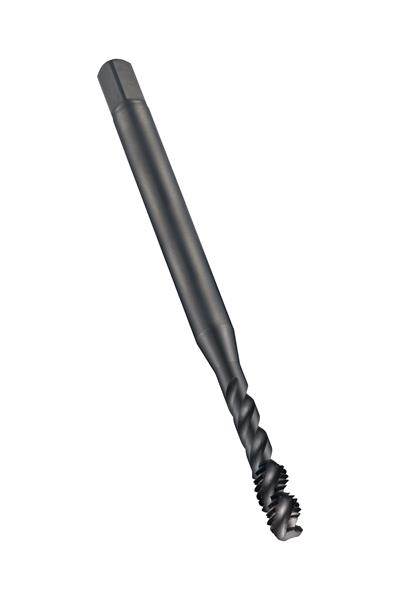

6 mm x 1.00 mm Coarse Carbide (HSS-E) Steam Omm xide Finish RH 6G 4 Flute Semi-Bottoming Spiral Flute Machine Tap
- Item Code: 5973559
- Brand: Dormer
- Unit Size: 1
Description
Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 6.0mm shank and 4.9mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45? helix angle for 2.5xD blind hole threading in general purpose applications
Tech Specs
Back To Top| Coating/Finish | Steam Tempered |
|---|---|
| Helix Angle | 45 Deg. |
| Material | HSS Cobalt Powdered Metal |
| Overall Length Inches | 3.1496 |
| Shank Style | Cylindrical shank with Square |
| Overall Length Metric | 80 mm |
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Brand | Dormer |
