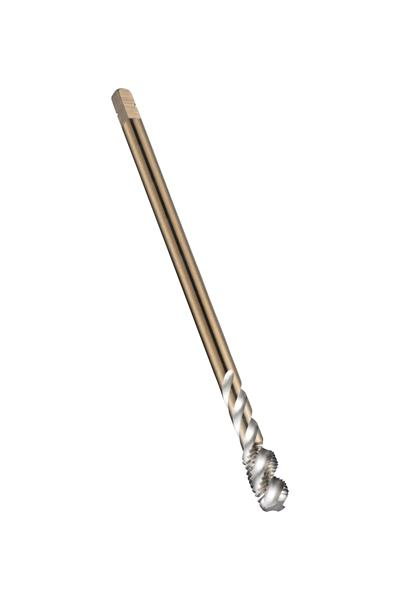

10 mm x 0.75 mm Fine Carbide (HSS-E) Bright Finish RH 6H 4 Flute Semi-Bottoming 45 Deg. Spiral Flute Machine Tap
- Item Code: 5973591
- Brand: Dormer
- Unit Size: 1
Description
Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric Fine thread M10 with 0.75 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 7.0mm shank and 5.5mm square drive, powder metallurgical HSS-E with bright finish and 45? helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Overall Length Metric | 90 mm |
| Overall Length Inches | 3.5433 |
| Cutting Direction | Right |
| Material | HSS Cobalt Powdered Metal |
| Number of Flutes | 3 |
| Shank Style | Cylindrical shank with Square |
| Helix Angle | 45 Deg. |
| Coating/Finish | Bright |
