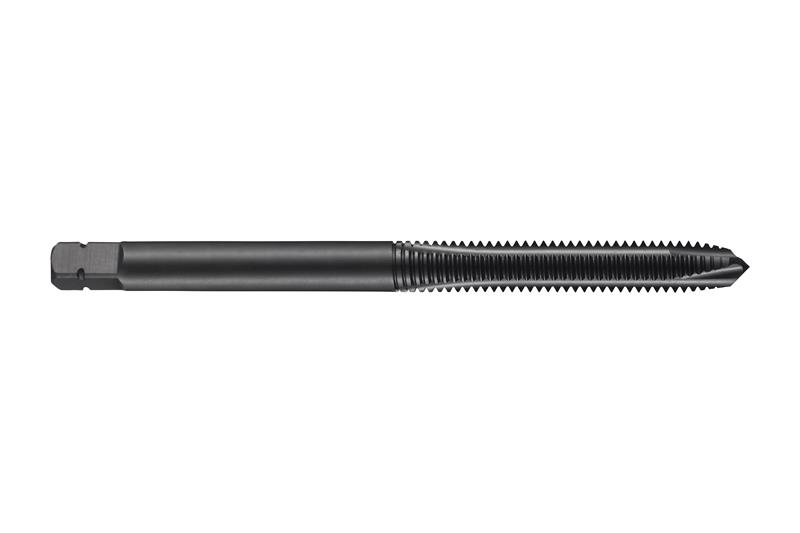

8 mm x 1 mm Fine Cobalt (HSS-E) Steam Oxide Finish 3 Flute RH Semi-Bottoming Chamfer Spiral Flute Tap
- Item Code: 5973601
- Brand: Dormer
- Unit Size: 1
Description
Dormer?s E016 machine taps are for tapping metric fine threads. They come with a spiral point, for threading through holes (holes which go all the way through the material) and have a steam tempered finish to stop workpiece material from sticking to the cutting edges of the tool so you can be sure of clean, accurate threads. The powder metal High Speed cobalt used in manufacture provides longer tool life combined with great performance, and the taps are very versatile, being suitable for tapping many materials, including steels, stainless steels and aluminium. E008 machine taps for metric fine threads are manufactured to ANSI standards.
Tech Specs
Back To Top| Overall Length Fractional | 2-23/32" |
|---|---|
| Overall Length Metric | 69.06 mm |
| Coating/Finish | Steam Tempered |
| Cutting Direction | Right |
| Helix Angle | 45 Deg. |
| Material | HSS Cobalt Powdered Metal |
| Number of Flutes | 3 |
| Shank Style | Cylindrical shank with Square |
| Overall Length Inches | 2.7188" |
| Brand | Dormer |
