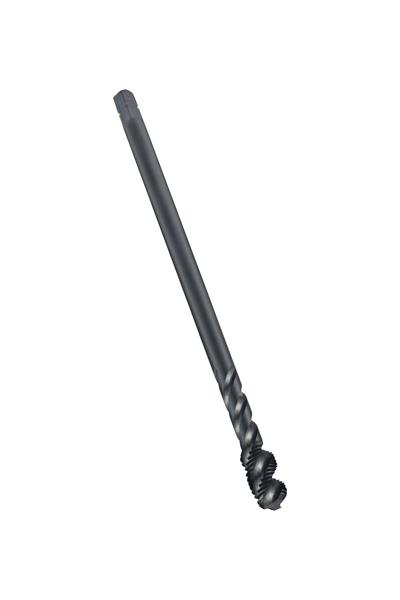

30mm x2.00 mm Fine Carbide (HSS-E) Steam Oxide Finish RH 6H 4 Flute Semi-Bottoming 45 Deg. Spiral Flute Machine Tap
- Item Code: 5973645
- Brand: Dormer
- Unit Size: 1
Description
Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric Fine thread M30 with 2.00 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 22.0mm shank and 18.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45? helix angle for 2.5xD blind hole threading in general purpose applications
Tech Specs
Back To Top| Material | HSS Cobalt Powdered Metal |
|---|---|
| Shank Style | Cylindrical shank with Square |
| Number of Flutes | 4 |
| Brand | Dormer |
| Overall Length Inches | 5.9055 |
| Overall Length Metric | 150 mm |
| Coating/Finish | Steam Tempered |
| Cutting Direction | Right |
| Helix Angle | 45 Deg. |
