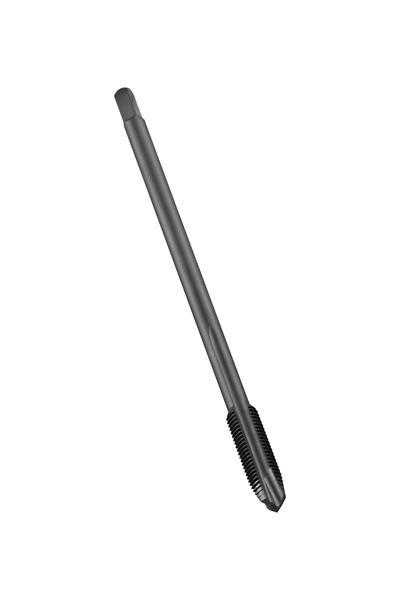

6 mm x 0.75 mm Fine Carbide (HSS-E) Steam Oxide Finish RH 6H 3 Flute Plug Spiral Point Machine Tap
- Item Code: 5973699
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric Fine thread M6 with 0.75 mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 4.5mm shank and 3.4mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Material | HSS Cobalt Powdered Metal |
| Overall Length Inches | 3.1496 |
| Shank Style | Cylindrical shank with Square |
| Overall Length Metric | 80 mm |
| Coating/Finish | Steam Tempered |
| Cutting Direction | Right |
| Number of Flutes | 3 |
