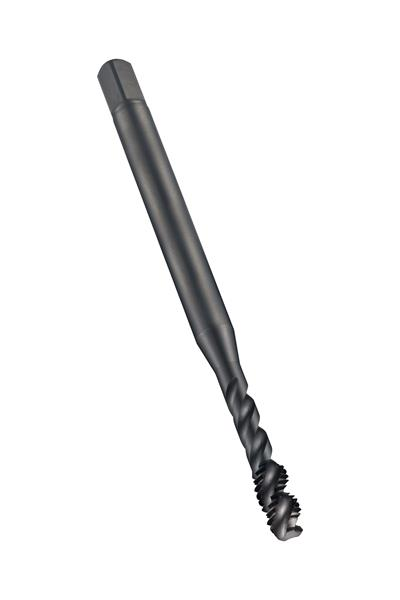

#6-32 UNC Carbide (HSS-E) Bright Finish RH 2B 3 Flute Semi-Bottoming 45 Deg. Spiral Flute Machine Tap
- Item Code: 5973724
- Brand: Dormer
- Unit Size: 1
Description
Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Coarse thread UNC 6 with 32 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 4.0mm shank and 3.0mm square drive, powder metallurgical HSS-E with bright finish and 45? helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium
Tech Specs
Back To Top| Overall Length Metric | 56 mm |
|---|---|
| Brand | Dormer |
| Coating/Finish | Bright |
| Overall Length Inches | 2.2047 |
| Cutting Direction | Right |
| Helix Angle | 45 Deg. |
| Number of Flutes | 3 |
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
