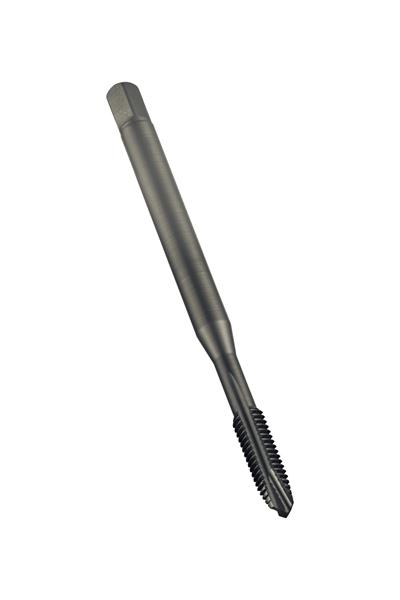

#6-32 UNC Carbide (HSS-E) Bronze Oxide Body with a Bright Finish 3 Flute Plug Spiral Point Tap
- Item Code: 5973745
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for Unified National Coarse thread UNC 6 with 32 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 4.0mm shank and 3.0mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium
Tech Specs
Back To Top| Coating/Finish | Bright |
|---|---|
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Overall Length Metric | 56 mm |
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
| Overall Length Inches | 2.2047 |
| Brand | Dormer |
