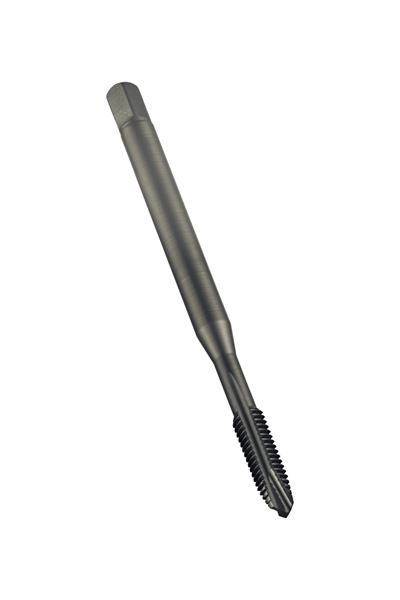

#1-8 UNC Carbide (HSS-E) Steam Oxide Finish 3 Flute Plug Spiral Point Tap
- Item Code: 5973754
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for Unified National Coarse thread UNC 1" with 8 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 18.0mm shank and 14.5mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications
Tech Specs
Back To Top| Material | HSS Cobalt Powdered Metal |
|---|---|
| Shank Style | Cylindrical shank with Square |
| Overall Length Inches | 6.2992 |
| Number of Flutes | 4 |
| Brand | Dormer |
| Overall Length Metric | 160 mm |
| Coating/Finish | Steam Tempered |
| Cutting Direction | Right |
