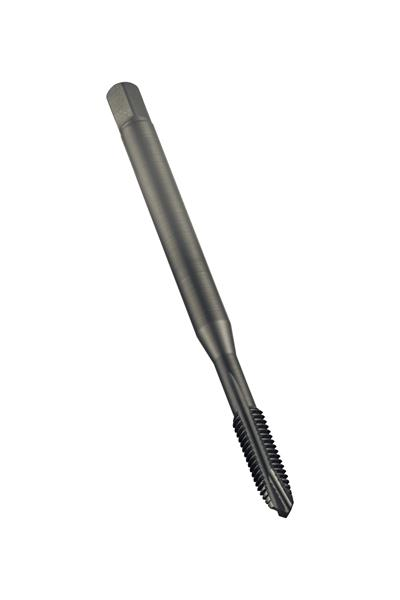

1/4-20 in. UNC Carbide (HSS-E) Steam Oxide Finish 3 Flute Plug Spiral Point Tap
- Item Code: 5973758
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for Unified National Coarse thread UNC 1/4" with 20 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 7.0mm shank and 5.5mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications
Tech Specs
Back To Top| Material | HSS Cobalt Powdered Metal |
|---|---|
| Overall Length Inches | 3.1496 |
| Shank Style | Cylindrical shank with Square |
| Brand | Dormer |
| Coating/Finish | Steam Tempered |
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Overall Length Metric | 80 mm |
