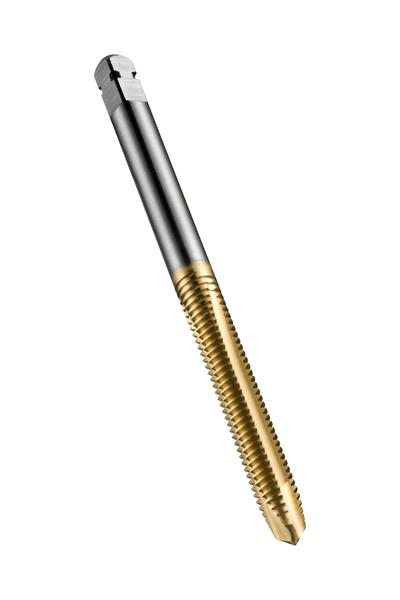

8 mm x 1.25 mm Carbide (HSS-E) Gold Finish RH 3 Flute Coarse Plug Chamfer Spiral Point Tap
- Item Code: 5973802
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 8.0mm shank and 6.3mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Material | HSS Cobalt Powdered Metal |
|---|---|
| Shank Style | Cylindrical shank with Square |
| Brand | Dormer |
| Overall Length Inches | 2.8346 |
| Overall Length Metric | 72 mm |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Number of Flutes | 3 |
