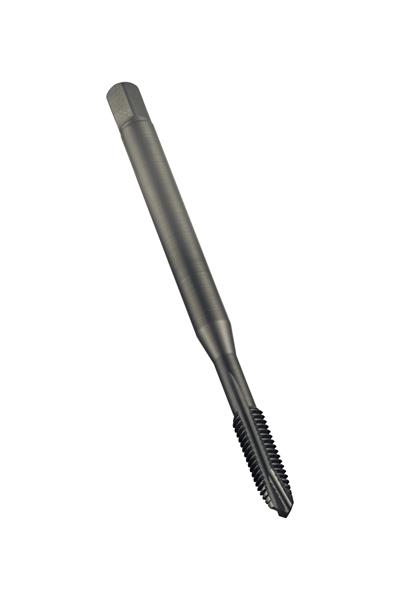

3/4-10 in. UNC Carbide (HSS-E) Steam Oxide Finish 3 Flute Plug Spiral Point Tap
- Item Code: 5973810
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for Unified National Coarse thread UNC 3/4" with 10 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 14.0mm shank and 11.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications
Tech Specs
Back To Top| Cutting Direction | Right |
|---|---|
| Brand | Dormer |
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
| Overall Length Inches | 4.9213 |
| Overall Length Metric | 125 mm |
| Number of Flutes | 4 |
| Coating/Finish | Steam Tempered |
