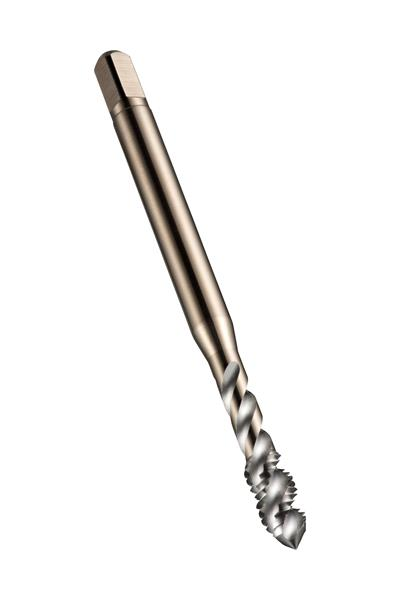

5 mm x 0.80 mm Coarse Cobalt (HSS-E) Oxide Finish 6H 4 Flute Plug Chamfer Spiral Point Tap
- Item Code: 5973865
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M5 with 0.80 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 5.0mm shank and 4.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Overall Length Metric | 58 mm |
| Overall Length Inches | 2.2835 |
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
| Coating/Finish | Steam Tempered |
| Cutting Direction | Right |
| Number of Flutes | 3 |
