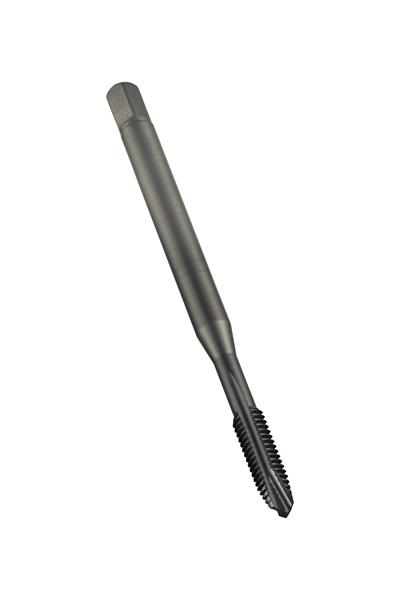

#8-36 UNF Carbide (HSS-E) Bronze Oxide Body with a Bright Finish 3 Flute Plug Spiral Point Tap
- Item Code: 5973871
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Fine thread UNF 8 with 36 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 4.5mm shank and 3.4mm square drive, powder metallurgical HSS-E with bright finish for 2.5xD through hole threading in free machining and plain carbon steel and wrought or cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
| Overall Length Metric | 63 mm |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Overall Length Inches | 2.4803 |
