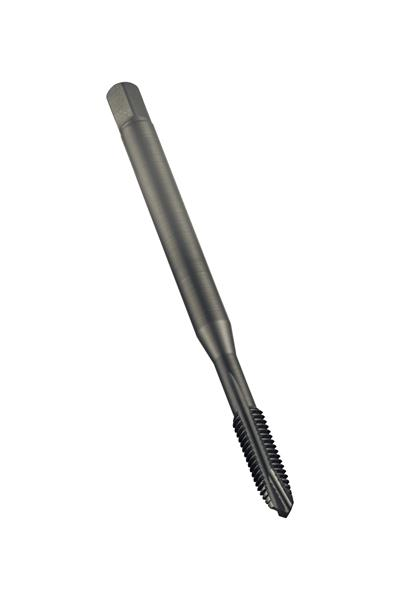

1/4-28 in. UNF Carbide (HSS-E) Steam Oxide Finish 3 Flute Plug Spiral Point Tap
- Item Code: 5973884
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Fine thread UNF 1/4" with 28 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 7.0mm shank and 5.5mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications
Tech Specs
Back To Top| Brand | Dormer |
|---|---|
| Overall Length Inches | 3.1496 |
| Shank Style | Cylindrical shank with Square |
| Overall Length Metric | 80 mm |
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Coating/Finish | Steam Tempered |
| Material | HSS Cobalt Powdered Metal |
