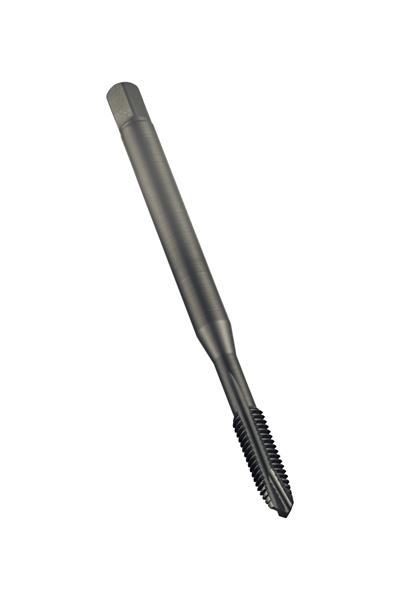

3/4-16 in. UNF Carbide (HSS-E) Steam Oxide Finish 4 Flute Plug Spiral Point Tap
- Item Code: 5973894
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Fine thread UNF 3/4" with 16 TPI and 2B class of fit, dimensions according to DIN 2184-1 standard with 14.0mm shank and 11.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications
Tech Specs
Back To Top| Cutting Direction | Right |
|---|---|
| Coating/Finish | Steam Tempered |
| Overall Length Metric | 125 mm |
| Brand | Dormer |
| Number of Flutes | 4 |
| Overall Length Inches | 4.9213 |
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
