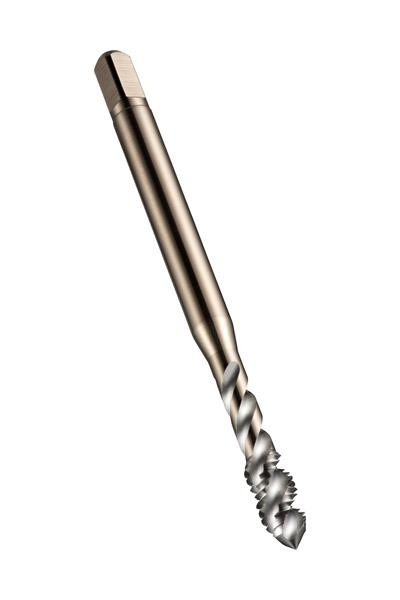

12 mm x 1.75 mm Coarse Cobalt (HSS-E) Gold Finish 3 Flute RH 45 Deg. Semi-Bottoming Spiral Flute Tap
- Item Code: 5973895
- Brand: Dormer
- Unit Size: 1
Description
Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 9.0mm shank and 7.1mm square drive, powder metallurgical HSS-E with bright finish and 45? helix angle for 2.5xD blind hole threading in free machining and plain carbon steel and wrought or cast aluminium
Tech Specs
Back To Top| Material | HSS Cobalt Powdered Metal |
|---|---|
| Shank Style | Cylindrical shank with Square |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Helix Angle | 45 Deg. |
| Number of Flutes | 3 |
| Overall Length Inches | 3.5039 |
| Overall Length Metric | 89 mm |
| Brand | Dormer |
