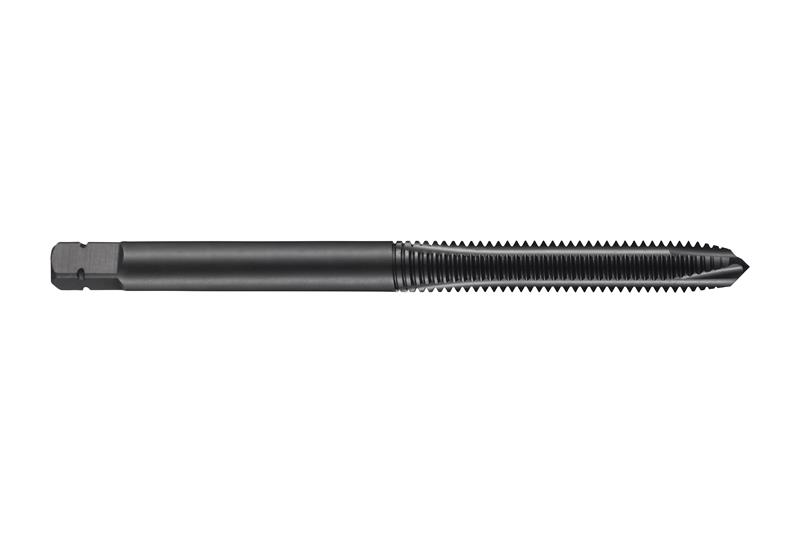

18 mm x 2 mm Coarse Cobalt (HSS-E) Steam Oxide 3 Flute RH Plug Chamfer Spiral Point Tap
- Item Code: 5973929
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M18 with 2.50 mm pitch and 6H class of fit, dimensions according to ANSI standard with 0.5420" shank and 0.4060" square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications
Tech Specs
Back To Top| Overall Length Fractional | 4-1/32" |
|---|---|
| Overall Length Inches | 4.0313" |
| Overall Length Metric | 102.39 mm |
| Brand | Dormer |
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
| Coating/Finish | Steam Tempered |
| Cutting Direction | Right |
| Number of Flutes | 3 |
