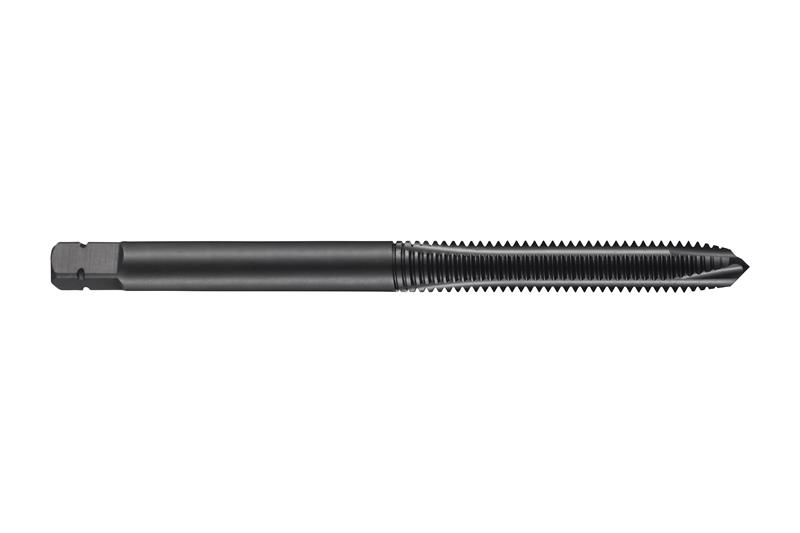

4 mm x 0 mm Coarse Cobalt (HSS-E) Steam Oxide 2 Flute RH Plug Chamfer Spiral Point Tap
- Item Code: 5973941
- Brand: Dormer
- Unit Size: 1
Description
Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit, dimensions according to ANSI standard with 0.1680" shank and 0.1310" square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications
Tech Specs
Back To Top| Overall Length Metric | 53.98 mm |
|---|---|
| Coating/Finish | Steam Tempered |
| Cutting Direction | Right |
| Material | HSS Cobalt Powdered Metal |
| Overall Length Inches | 2.125" |
| Shank Style | Cylindrical shank with Square |
| Number of Flutes | 2 |
| Overall Length Fractional | 2-1/8" |
| Brand | Dormer |
