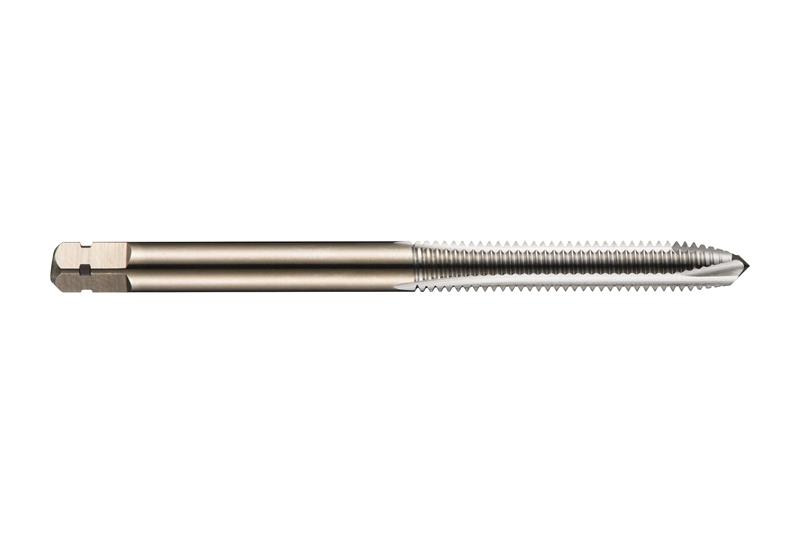

9/16-18 UNF HSS Steam Oxide Finish RH 2B Plug Chamfer 45 Deg. Spiral Flute Tap
- Item Code: 5973956
- Brand: Dormer
- Unit Size: 1
Description
Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Fine thread UNF 9/16" with 18 TPI and 2B class of fit, dimensions according to ISO 529 standard with 11.2mm shank and 9.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45? helix angle for 2.5xD blind hole threading in general purpose applications
Tech Specs
Back To Top| Overall Length Metric | 95 mm |
|---|---|
| Brand | Dormer |
| Material | HSS Cobalt Powdered Metal |
| Shank Style | Cylindrical shank with Square |
| Coating/Finish | Steam Tempered |
| Overall Length Inches | 3.7402 |
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Helix Angle | 45 Deg. |
